Voltage: 220V / 110V

Power：150W / 300W

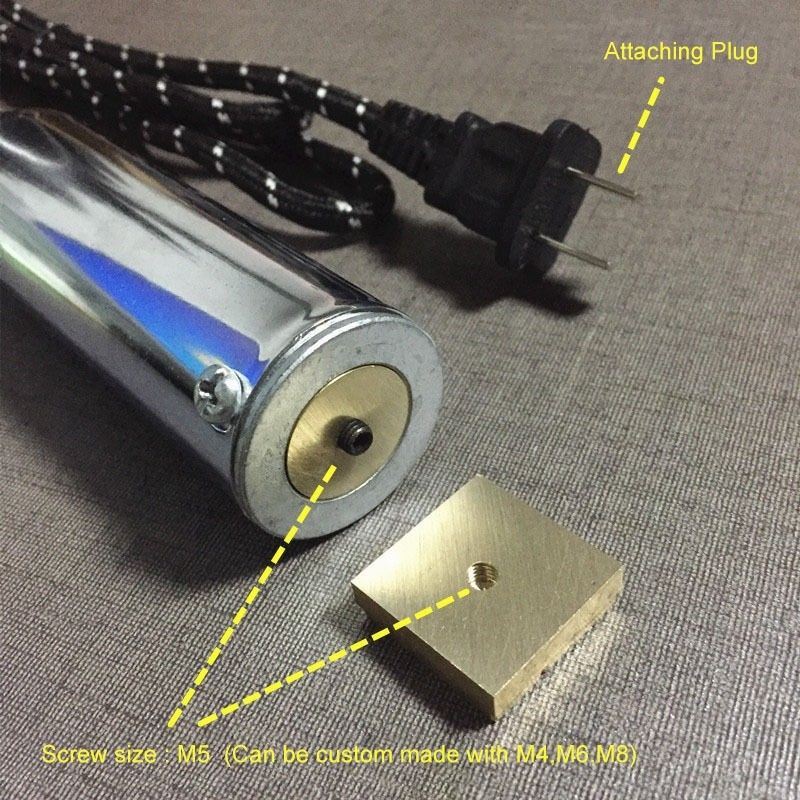

Threaded rod sizes: M5/M8

(threaded rod sizes have only M5/M8 in default,if need M4/M6 ,need custom made,it will take more time ,hope your kind understanding.Many thanks.)

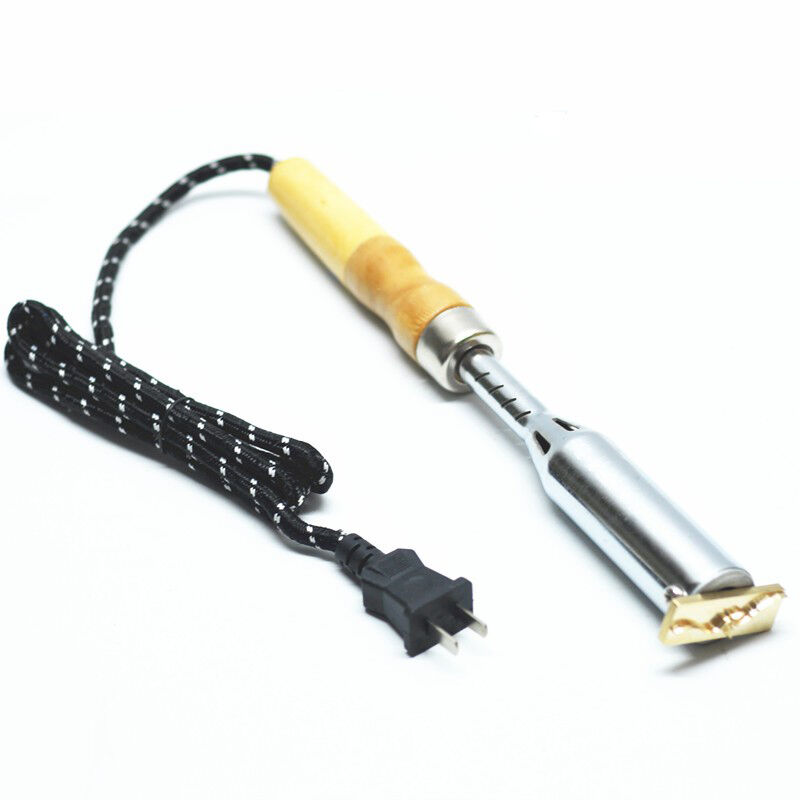

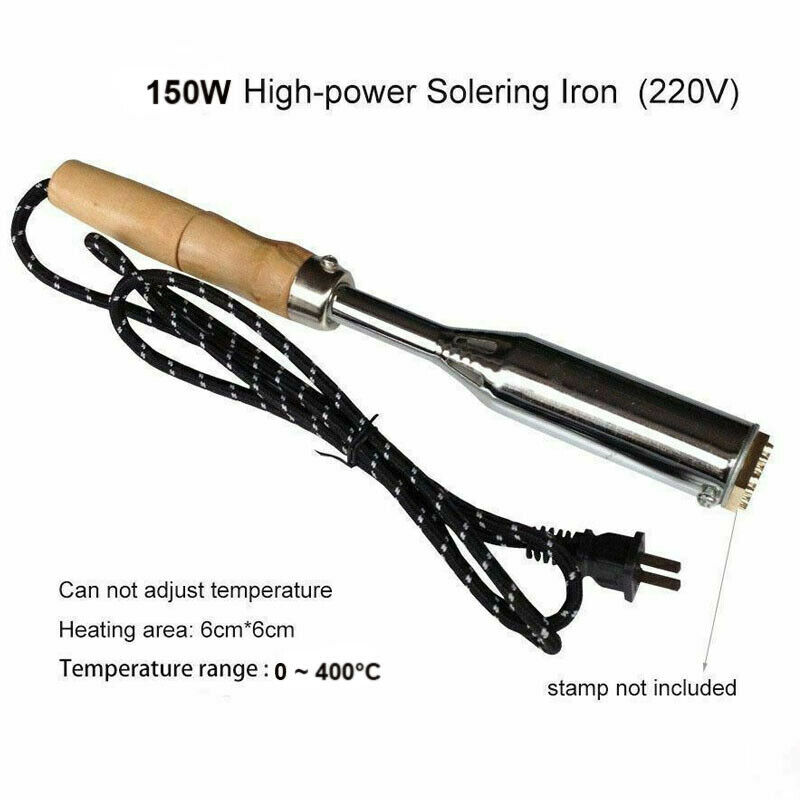

150W:

150W Temp unadjustable Soldering Iron (may need an plug adaptor converter,will attach in the package for free)

Heating area: ≤5.5*5.5 cm

Temperature range: 0-400°C

Product function:　Function: hot stamping + branding

Branding material: Leather/wood/cake/plastic/PU/Paper/Peel/Flannelette…

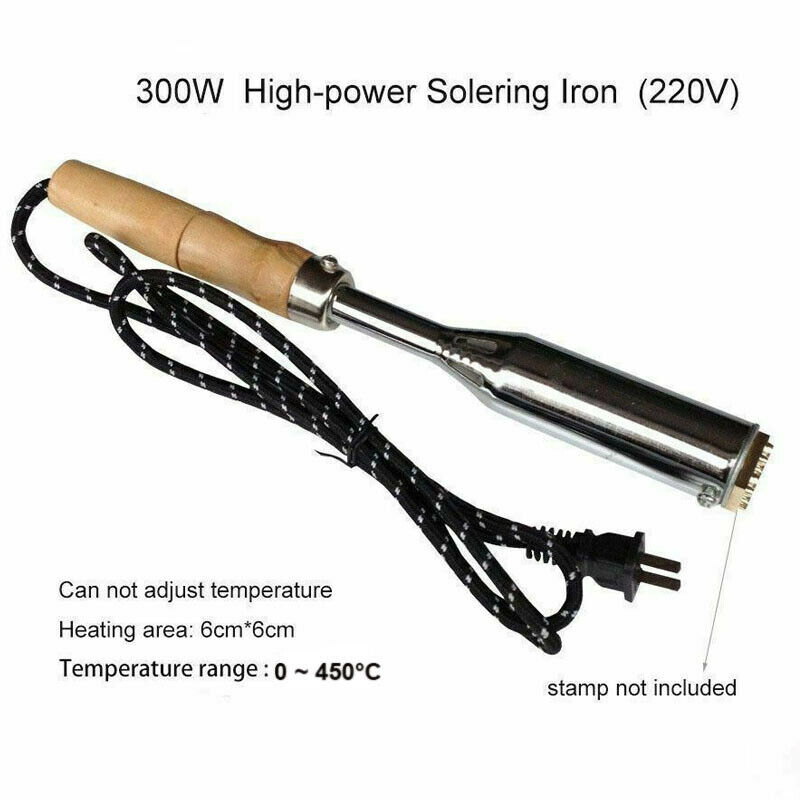

300W:

300W Temp unadjustable Soldering Iron (Some batches may need an plug adaptor converter,will attach in the package for free)

Heating area: ≤7*7 cm

Temperature range: 0-450°C

Product function:　Function: hot stamping + branding

Branding material: Leather/wood/cake/plastic/PU/Paper/Peel/Flannelette…

how to use the machine:

1)  connect the stamp to the machine tightly;

2)  Plug the machine to electrical source(220V-240V).Electrify approx 4-5 minutes for pre-heated,till the stamp colour turn into almost red,then you can test it.

(1min reach 100°C, 2 mins-200°C,3 mins-300°C,4 mins-350°C,5 mins-400°C must disconnect power when reach 400°C)

3） Turn off electricity when the the stamp reaches working temp(after 4-5 minutes pre-heating),otherwise it will be easy get damage,as temp too much high.

There will be a major phenomenon occur when pre-heating and using:

 it will generate smoke along with strange smell,it's normal,please do not worry.

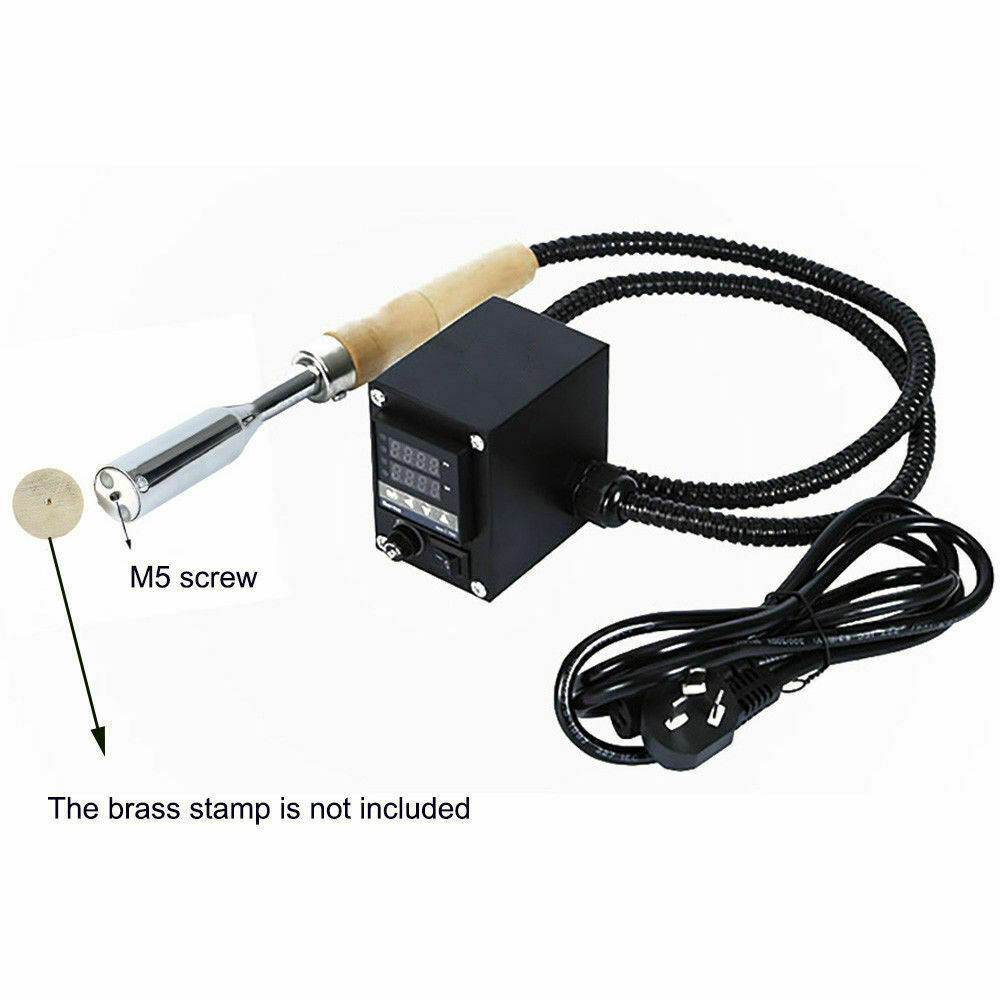

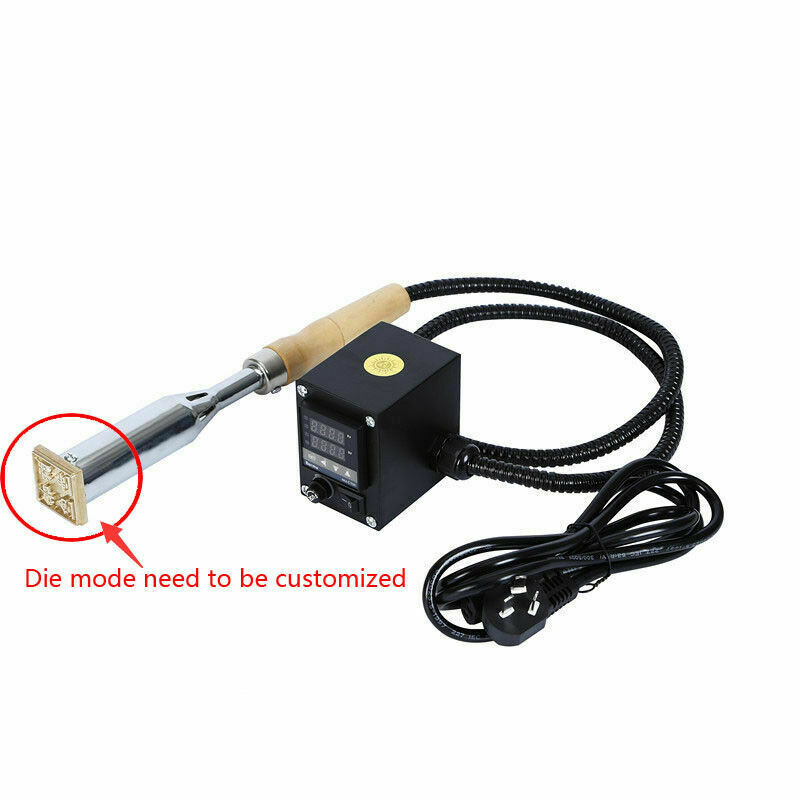

300W Temp adjustable Soldering Iron (recommended)

Heating area: ≤ 7*7 cm

Adjustbale Temp: 0-400°C Temp control accurate

Product function:　Function: hot stamping + branding {suitable for Heat Embossing+ Foil Stamping(highly cost effective)}

***Remarks***

This Listing Does Not Include Soldering Iron.
